74HC4053FT

Triple 2-Channel Analog Multiplexer/Demultiplexer

74HC4053FT Features

* (1) Wide operating temperature range: Topr = -40 to 125

* (2) Low power dissipation: ICC = 4.0 µA (max) (VCC = 6.0 V, VEE = GND, Ta = 25

* ) (3) High noise immunity: VNIH = VNIL = 28% VCC (min) (4) Low ON-resistance: RON = 50 Ω (typ.) at VCC - VEE = 9 V (5) High degree of linearity: THD = 0.0

74HC4053FT General Description



* Triple 2-Channel Analog Multiplexer/Demultiplexer 2. General The 74HC4053FT is high speed CMOS ANALOG MULTIPLEXER/DEMULTIPLEXER fabricated with silicon gate CMOS technology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. .

74HC4053FT Datasheet (293.51 KB)

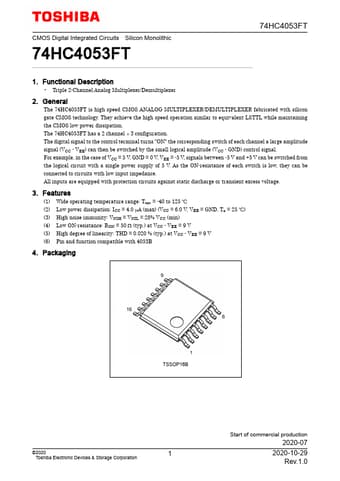

Preview of 74HC4053FT PDF

Datasheet Details

Part number:

74HC4053FT

Manufacturer:

Toshiba ↗

File Size:

293.51 KB

Description:

Triple 2-channel analog multiplexer/demultiplexer.
