74HCT540D

Octal Bus Buffer

Toshiba

74HCT540D Features

* (1) Wide operating temperature range: Topr = -40 to 125

* (Note 1) (2) High speed: tpd = 9 ns (typ.) at VCC = 5.5 V (3) Low power dissipation: ICC = 4.0 µA (max) at Ta = 25

* (4) Compatible with TTL outputs: VIL = 0.8 V(max) VIH = 2.0 V(min) (5) Wide interfacing ability: LSTTL, NMOS, CMOS (6

74HCT540D General Description

* Octal Bus Buffer 74HCT540D: INVERTING, 3-STATE OUTPUTS 74HCT541D: NON-INVERTING, 3-STATE OUTPUTS 2. General The 74HCT540D/74HCT541D are high speed CMOS OCTAL BUS BUFFERs fabricated with silicon gate C2MOS technology. These devices may be used as a level converter for interfacing TTL or NMO.

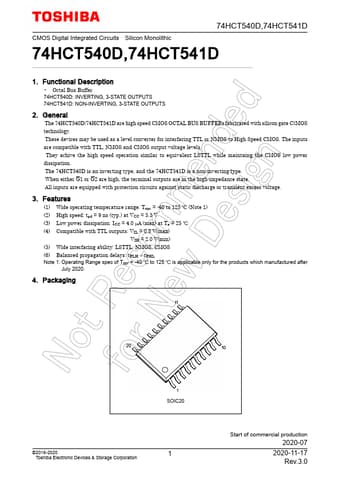

74HCT540D Datasheet (248.94 KB)

74HCT540D Datasheet Preview — Preview of 74HCT540D PDF

Datasheet Details

Part number:

74HCT540D

Manufacturer:

Toshiba ↗

File Size:

248.94 KB

Description:

Octal bus buffer.
