74HCT14D Datasheet, inverter equivalent, Toshiba

74HCT14D Features

• Inverter (1) High speed: tpd = 17 ns (typ.) at VCC = 5 V (2) Low power dissipation: ICC = 1.0 µA (max) at Ta = 25  (3) Wide interfacing ability: LSTTL, NMOS, CMOS (4) Balanced propagation delay

PDF File Details

Part number:

74HCT14D

Manufacturer:

Toshiba ↗

File Size:

151.60kb

Download:

📄 Datasheet

Description:

Hex schmitt inverter.

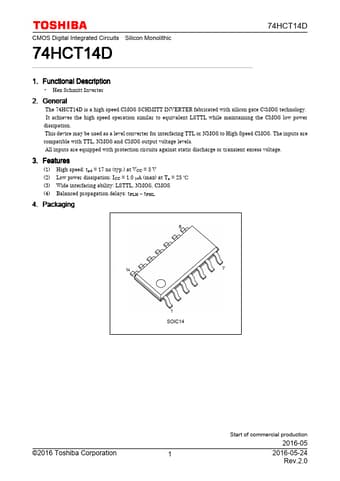

Hex Schmitt Inverter 2. General The 74HCT14D is a high speed CMOS SCHMITT INVERTER fabricated with silicon gate C2MOS techn
