74HCT10-Q100

Triple 3-input NAND gate

74HCT10-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Complies with JEDEC standard JESD7A

* Input levels:

* For 74HC10-Q100: CMOS level

* For 74HCT10-Q100: TTL level

74HCT10-Q100 General Description

The 74HC10-Q100; 74HCT10-Q100 is a triple 3-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is su.

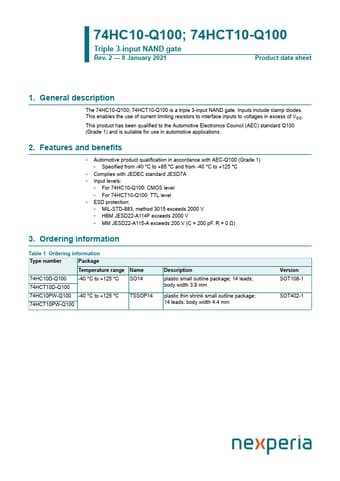

74HCT10-Q100 Datasheet (219.14 KB)

Preview of 74HCT10-Q100 PDF

Datasheet Details

Part number:

74HCT10-Q100

Manufacturer:

nexperia ↗

File Size:

219.14 KB

Description:

Triple 3-input nand gate.
