74HCT109-Q100 - Dual JK flip-flop

Product Overview

nexperia

📥 Download Datasheet

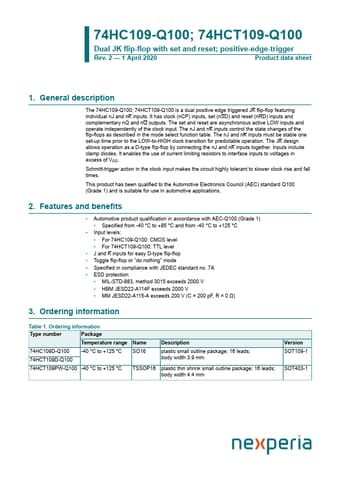

74HCT109-Q100 Dual JK flip-flop by nexperia - Datasheet Preview — Datasheet preview – 74HCT109-Q100

Datasheet Details

Part number	74HCT109-Q100
Manufacturer	nexperia
File Size	252.80 KB
Description	Dual JK flip-flop
Datasheet	74HCT109-Q100 Datasheet
Note	This datasheet PDF includes multiple part numbers: 74HCT109-Q100, 74HC109-Q100. Please refer to the document for exact specifications by model.
Additional preview pages of the 74HCT109-Q100 datasheet.

Product details

Description

The 74HC109-Q100; 74HCT109-Q100 is a dual positive edge triggered JK flip-flop featuring individual nJ and nK inputs.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Input levels:.
For 74HC109-Q100: CMOS level.
For 74HCT109-Q100: TTL level.
J and K inputs for easy D-type flip-flop.
Toggle flip-flop or "do nothing" mode.
Specified in compliance with JEDEC standard no. 7A.
ESD protection:.
MIL-STD-883, method 3015 exceeds 2000 V.
HB.
