74HCT107D

Dual JK flip-flop

74HCT107D Features

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Complies with JEDEC standards:

* JESD8C (2.7 V to 3.6 V)

* JESD7A (2.0 V to

74HCT107D General Description

The 74HC107; 74HCT107 is a dual negative edge triggered JK flip-flop featuring individual J and K inputs, clock (CP) and reset (R) inputs and complementary Q and Q outputs. The reset is an asynchronous active LOW input and operates independently of the clock input. The J and K inputs control the sta.

74HCT107D Datasheet (262.00 KB)

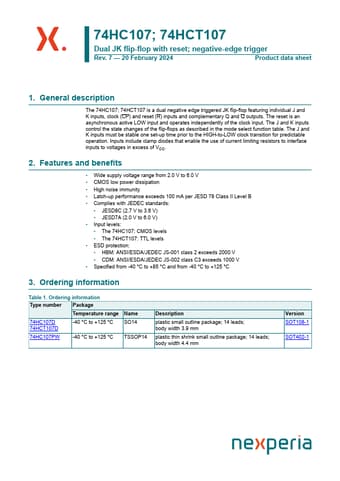

Preview of 74HCT107D PDF

Datasheet Details

Part number:

74HCT107D

Manufacturer:

nexperia ↗

File Size:

262.00 KB

Description:

Dual jk flip-flop.
