74HCT14 Datasheet, trigger equivalent, NXP

74HCT14 Features

• Trigger
• Complies with JEDEC standard no. 7A
• Low-power dissipation
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200

PDF File Details

Part number:

74HCT14

Manufacturer:

NXP ↗

File Size:

185.54kb

Download:

📄 Datasheet

Description:

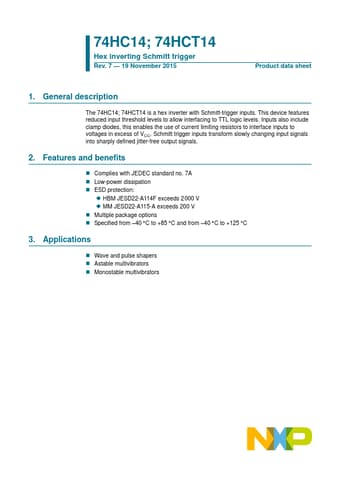

Hex inverting schmitt trigger. The 74HC14; 74HCT14 is a hex inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow inter

74HCT14 Application

• Applications
• Wave and pulse shapers
• Astable multivibrators
• Monostable multivibrators NXP Semiconductors 74HC14; 74HC
