74HCT14-Q100 - Hex inverting Schmitt trigger

Product Overview

NXP

📥 Download Datasheet

74HCT14-Q100 Hex inverting Schmitt trigger by NXP - Datasheet Preview — Datasheet preview – 74HCT14-Q100

Datasheet Details

Part number	74HCT14-Q100
Manufacturer	NXP
File Size	285.54 KB
Description	Hex inverting Schmitt trigger
Datasheet	74HCT14-Q100 Datasheet
Note	This datasheet PDF includes multiple part numbers: 74HCT14-Q100, 74HC14-Q100. Please refer to the document for exact specifications by model.

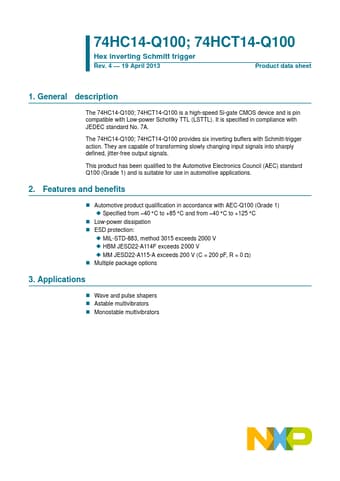

Additional preview pages of the 74HCT14-Q100 datasheet.

Product details

Description

The 74HC14-Q100; 74HCT14-Q100 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL).

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from 40 C to +85 C and from 40 C to +125 C.
Low-power dissipation.
ESD protection:.
MIL-STD-883, method 3015 exceeds 2000 V.
HBM JESD22-A114F exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 ).
Multiple package options 3.
