D2206 2SD2206

D2206 Description

2SD2206 TOSHIBA Transistor Silicon NPN Epitaxial Type (Darlington Power Transistor) 2SD2206 Micro Motor Drive, Hammer Drive Applications Switching Ap.

D2206 Applications

* Switching Applications Power Amplifier Applications Unit: mm
* High DC current gain: hFE = 2000 (min) (VCE = 2 V, IC = 1 A)
* Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 1 A, IB = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collecto

📥 Download Datasheet

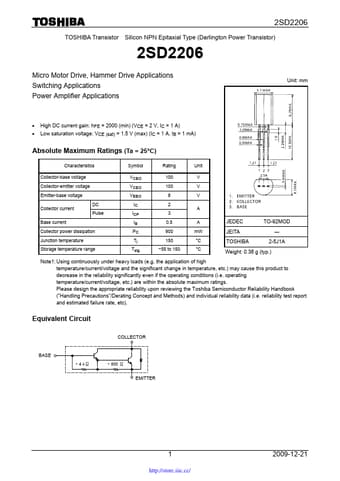

Preview of D2206 PDF
