D2202UK METAL GATE RF SILICON FET

TetraFET D2202UK ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA C 2 1 A 3 F (2 pls) H J N (typ) B D (2 pls) MI PIN 1 PIN 3 SOURCE GATE E KG DP PIN 2 DRAIN DIM Millimetres Tol. Inches Tol. A 16.51 0.25 0.650 0.010 B 6.35 0.13 0.250 0.005 C 45° 5° 45° 5° D 3.30 0.13 0.130 0.005 E 18.92 0.05 0.745 0.002 F 1.52 0.13 0.060 0.005 G 2.16 0.13 0.085 0.005 H 14.22 0.05 0.560 0.002 I 1.52 0.13 0.060 0.005 J 6.35 0.13 0.250 0.005 K 0.10 0.02 0.004 0.001 M.

D2202UK Features

* SIMPLIFIED AMPLIFIER DESIGN

* SUITABLE FOR BROAD BAND APPLICATIONS

* LOW Crss

* SIMPLE BIAS CIRCUITS

* LOW NOISE

* HIGH GAIN

* 10 dB MINIMUM APPLICATIONS

* VHF/UHF COMMUNICATIONS from 1 MHz to 2 GHz ABSOLUTE MAXIMUM RATINGS (Tcase =

D2202UK Datasheet (92.87 KB)

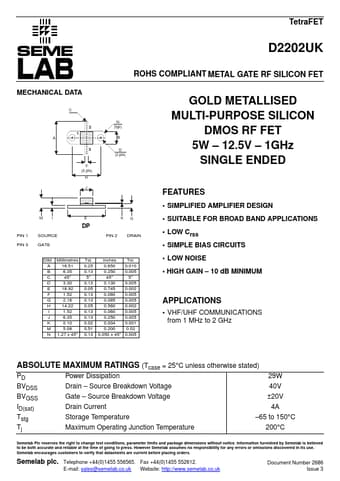

D2202UK Datasheet Preview — Preview of D2202UK PDF

Datasheet Details

Part number:

D2202UK

Manufacturer:

Seme LAB

File Size:

92.87 KB

Description:

Metal gate rf silicon fet.
