D2201 Datasheet - Sanyo

D2201 - PNP/NPN Epitaxial Planar Silicon Transistors

D2201 Features

* Surface mount type device making the following possible. -Reduction in the number of manufacturing processes for 2SB1452/2SD2201-applied equipment. -High density surface mount applications. -Small size of 2SB1452/2SD2201-applied equipment.

* Low collector-to-emitter saturation voltage.

D2201-Sanyo.pdf

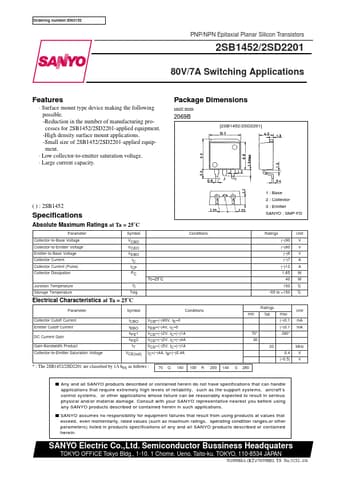

Preview of D2201 PDF
D2201 Datasheet Preview Page 2 D2201 Datasheet Preview Page 3

Datasheet Details

Part number:

D2201

Manufacturer:

Sanyo

File Size:

150.50 KB

Description:

Pnp/npn epitaxial planar silicon transistors.
