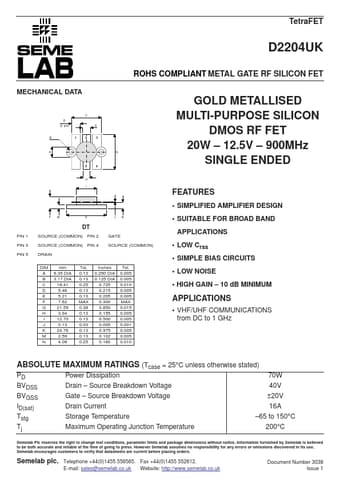

* SIMPLIFIED AMPLIFIER DESIGN
* SUITABLE FOR BROAD BAND APPLICATIONS
* LOW Crss
* SIMPLE BIAS CIRCUITS
* LOW NOISE
* HIGH GAIN
* 10 dB MINIMUM APPLICATIONS
* VHF/UHF COMMUNICATIONS from DC to 1 GHz ABSOLUTE MAXIMUM RATINGS (Tcase = 25°
D2204UK
Seme LAB
26.32 KB
Metal gate rf silicon fet.
TetraFET
D2204UK
ROHS COMPLIANT METAL GATE RF SILICON FET
MECHANICAL DATA
D (2 pls)
C E
B
1
2
3
A
G
5
4
H I
PIN 1 PIN 3 PIN 5
FM
K
DT.
