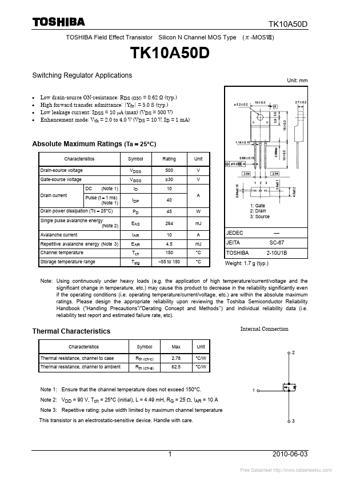

TK10A50D
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSⅦ)
TK10A50D
Switching Regulator Applications
• • • • Low drain-source ON-resistance: RDS (ON) = 0.62 Ω (typ.) High forward transfer admittance: ⎪Yfs⎪ = 5.0 S (typ.) Low leakage current: IDSS = 10 μA (max) (VDS = 500 V) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Unit: mm
Absolute Maximum Ratings (Ta = 25°C)
Characteristics Drain-source voltage Gate-source voltage DC Drain current (Note 1) Symbol VDSS VGSS ID IDP PD EAS IAR EAR Tch Tstg Rating 500 ±30 10 40 45 264 10 4.
