TA8193S DUAL LINE OUTPUT AMPLIFIER

Toshiba

Description

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8193S Dual Line Output Amplifier TA8193S The TA8193S is dual line output amplifier de.

📥 Download Datasheet

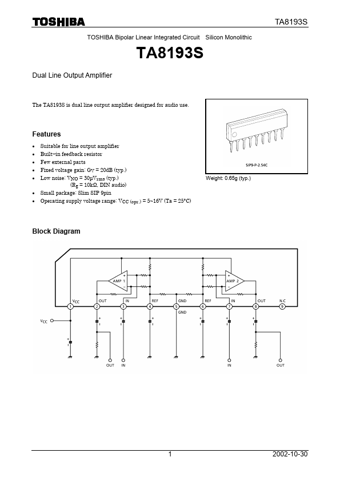

TA8193S Datasheet Preview — Preview of TA8193S PDF

Datasheet Specifications

Part number: TA8193S
Manufacturer: Toshiba ↗
File Size: 542.84 KB
Datasheet: TA8193S_Toshiba.pdf
Description: DUAL LINE OUTPUT AMPLIFIER

Features

* Suitable for line output amplifier
* Built
* in feedback resistor
* Few external parts
* Fixed voltage gain: GV = 20dB (typ. )
* Low noise: VNO = 30µVrms (typ. ) (Rg = 10kΩ, DIN audio)
* Small package: Slim SIP 9pin
* Operating supply voltage range: VCC (opr. ) = 5~1

Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m
