TA8198F

DC/DC CONVERTER FOR ELECTRIC TUNING

TA8198F Features

* Few external parts.

* Excellent spurious radiation by oscillation of sine wave.

* Built

* in constant current source, it is suitable for digital tuning system. (ICTL can be controlled by RCTL)

* Output voltage VO = 15.5V (typ.) Weight: 0.09g (typ.)

* Excellent regula

TA8198F Datasheet (643.39 KB)

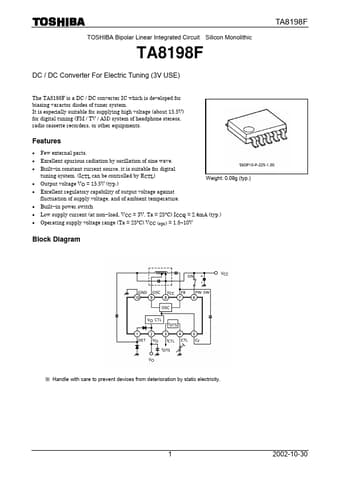

Preview of TA8198F PDF

Datasheet Details

Part number:

TA8198F

Manufacturer:

Toshiba ↗

File Size:

643.39 KB

Description:

Dc/dc converter for electric tuning.
TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8198F DC / DC Converter For Electric Tuning (3V USE) The TA8198F is a DC / DC converte.
