TB62213AFTG

PHASE-in controlled Bipolar Stepping Motor Driver IC

TB62213AFTG Features

* QFN48-P-0707-0.50

* Capable of controlling 1 bipolar stepping motor. Weight: 0.14g(Typ.)

* BiCD process integrated monolithic IC.

* PWM controlled constant-current drive.

* Allows Full Step, Half Step and 1/4 Step excitations.

* Output stage low on resi

TB62213AFTG Datasheet (753.49 KB)

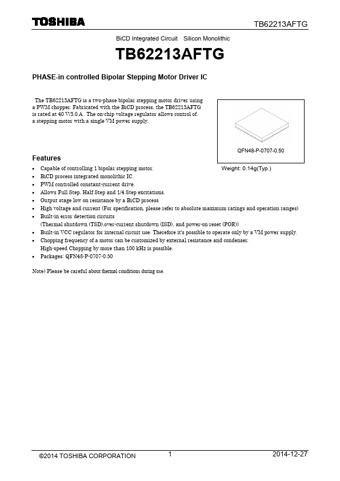

Preview of TB62213AFTG PDF

Datasheet Details

Part number:

TB62213AFTG

Manufacturer:

Toshiba ↗

File Size:

753.49 KB

Description:

Phase-in controlled bipolar stepping motor driver ic.
BiCD Integrated Circuit Silicon Monolithic TB62213AFTG PHASE-in controlled Bipolar Stepping Motor Driver IC The TB62213AFTG is a two-phase bipolar ste.
