TB62216FTG - PWM Chopper-Type Motor Driver IC

TB62216FTG Description

TOSHIBA BiCD Integrated Circuit Silicon Monolithic TB62216FTG PWM Chopper-Type Motor Driver IC The TB62216FTG is a motor driver using internal PWM sig.

TB62216FTG Features

* QFN48-P-0707-0.50 Monolithic IC by using BiCD process PWM controlled constant-current drive Package weight: 0.14g (typ) Low on-resistance of output stage transistor is low by using BiCD process. High Voltage and current (For specification, please refer to absolute maximum ratings and operation

📥 Download Datasheet

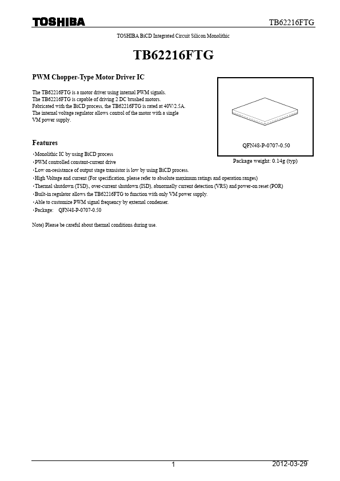

Preview of TB62216FTG PDF
