TB62707F - 8BIT LATCHES & CONSTANT CURRENT DRIVERS

The TB62707F by Toshiba is a 8BIT LATCHES & CONSTANT CURRENT DRIVERS. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the TB62707F 8BIT LATCHES & CONSTANT CURRENT DRIVERS datasheet (Toshiba).

Datasheet Details

Part number TB62707F
Manufacturer Toshiba
File Size 243.28 KB
Description 8BIT LATCHES & CONSTANT CURRENT DRIVERS
Datasheet download datasheet TB62707F_Toshiba.pdf
Additional preview pages of the TB62707F datasheet.

TB62707F Product details

Description

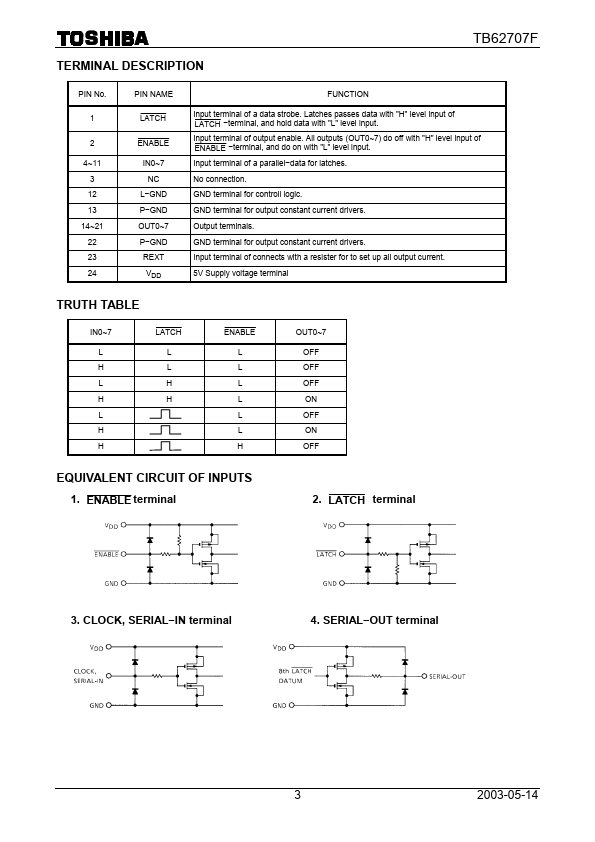

TB62707F PIN No.1 2 4~11 3 12 13 14~21 22 23 24 PIN NAME LATCH ENABLE IN0~7 NC L GND P GND OUT0~7 P GND REXT VDD FUNCTION Input terminal of a data strobe.Latches passes data with "H" level input of LATCH terminal, and hold data with "L" level input. terminal, and do on with "L" level input. data for latches.
