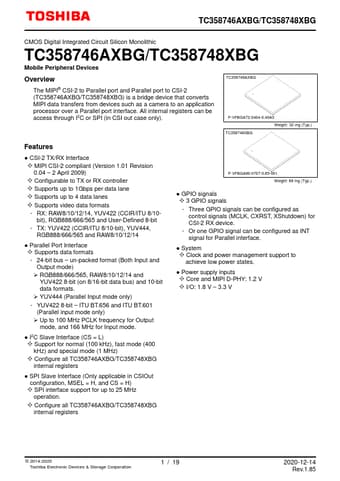

TC358746AXBG/TC358748XBG CMOS Digital Integrated Circuit Silicon Monolithic TC358746AXBG/TC358748XBG Mobile Peripheral Devices Overview TC358746AXBG The MIPI® CSI-2 to Parallel port and Parallel port to CSI-2 (TC358746AXBG/TC358748XBG) is a bridge device that converts MIPI data transfers from devices such as a camera to an application processor over a Parallel port interface. All internal registers can be access through I2C or SPI (in CSI out case only). P-VFBGA72-0404-0.40A3 Weight: 32 mg.

TC358746AXBG Features

* CSI-2 TX/RX Interface

* MIPI CSI-2 compliant (Version 1.01 Revision 0.04

* 2 April 2009)

* Configurable to TX or RX controller

* Supports up to 1Gbps per data lane

* Supports up to 4 data lanes

* Supports video data formats - RX: RAW8/10/12/14, YUV422 (CCIR/ITU 8/10
