TC358762XBG Datasheet - Toshiba

TC358762XBG - Mobile Peripheral

TC358762XBG CMOS Digital Integrated Circuit Silicon Monolithic TC358762XBG Mobile Peripheral Devices Overview TC358762XBG TC358762XBG chip de-serializes the stream into a parallel one.

The parallel output bus can be either a DPI or a DBI bus.

The usage of either DPI or DBI bus is mutually exclusive.

The DSI host controls/configures TC358762XBG chip via DSI's Generic Long Write packets.

The host controls (commands) the peripheral display device by sending DSI packets to TC358762XBG.

P-VFBG

TC358762XBG Features

* Standard followed:

* MIPI DSI version 1.01, Feb 2008

* MIPI D-PHY version 0.9, Oct 2007

* MIPI DPI version 2.0, Sep, 2005

* MIPI DBI-2 version 2.00, Nov 2005

* MIPI DCS Command version 1.02, Dec 2008

* DSI Receiver

* Dual Data Lane DSI Link with Bi-direction suppor

TC358762XBG-Toshiba.pdf

Preview of TC358762XBG PDF

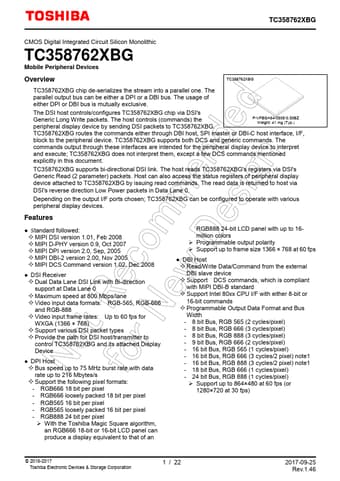

TC358762XBG Datasheet Preview Page 2 TC358762XBG Datasheet Preview Page 3

Datasheet Details

Part number:

TC358762XBG

Manufacturer:

Toshiba ↗

File Size:

330.54 KB

Description:

Mobile peripheral.
