TC358766XBG, Mobile Peripheral

TC358766XBG CMOS Digital Integrated Circuit Silicon Monolithic TC358766XBG Mobile Peripheral Devices Overview The DSI/DPI to DisplayPortTM converter .

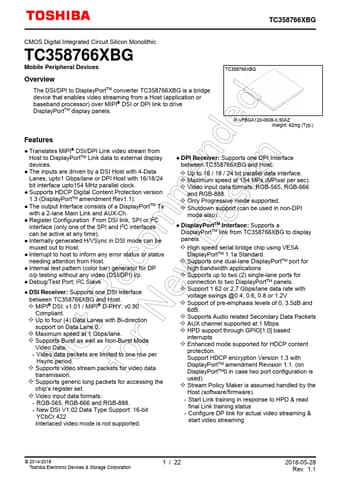

datasheet Preview Page 1 from Datasheet4u.com

TC358766XBG-Toshiba.pdf

TC358766XBG Datasheet Preview — Preview of TC358766XBG PDF

Datasheet Details

Part number:

TC358766XBG

Manufacturer:

Toshiba ↗

File Size:

496.44 KB

Description:

Mobile Peripheral

Features

* Translates MIPI® DSI/DPI Link video stream from Host to DisplayPortTM Link data to external display devices.
* The inputs are driven by a DSI Host with 4-Data Lanes, upto1 Gbps/lane or DPI Host with 16/18/24 bit interface upto154 MHz parallel clock.
* Supports HDCP Digital Content Prot

Applications

* Supports up to two (2) single-lane ports for connection to two DisplayPortTM panels.
* Support 1.62 or 2.7 Gbps/lane data rate with voltage swings @0.4, 0.6, 0.8 or 1.2V
* Support of pre-emphasis levels of 0, 3.5dB and 6dB.
* Supports Audio related Secondary Data Packets
* AUX
