9 4. Package 14 4.1. Package Dimensions (P-VFBGA72-0404-0.40A3) 14 5. Electrical Characteristics 15 5.1. Absolute Maximum Ratings 15 5.2. Operating Condition 15 6. Revision History 16 RESTRICTIONS ON PRODUCT USE 17 List of Figures Figure 1.1 System Block Diagram of TC358763XBG 6 Figure 3.1 Ball .

TC358763XBG CMOS Digital Integrated Circuit Silicon Monolithic TC358763XBG Mobile Peripheral Devices Overview TC358763XBG provides data conversion between multiple input formats to a specified output format for mobile display systems. As the middle-range to high-end mobile phone sets are going to integrate higher-resolution, wider color depth, and larger size display in the clam-shell style body, connection between base body and display system is getting more difficult TC358763XBG P-VFBGA72-0.

TC358763XBG Features

* LCD module interface - MIPI DSI-TX Data 3-lane, CLK 1-lane with data rates up to 500Mbps/lane

* Support up to XGA size LCD panel. (When DPI is selected as host interface)

* Output format: RGB888, RGB666 and RGB565.

* Maximum LCD resolution setting size: 1024 × 1024

* Host int

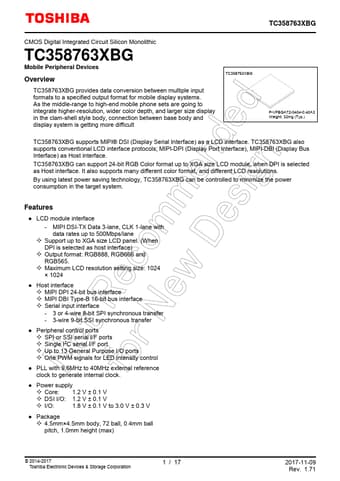

TC358763XBG Datasheet (292.64 KB)
