TC358748XBG, TC358746AXBG Datasheet - Toshiba

TC358748XBG - Mobile Peripheral

10 3.2.

TC358746AXBG BGA72 pin Count Summary 11 3.3.

TC358748XBG BGA80 Pin Count Summary 11 3.4.

TC358746AXBG Pin Layout 12 3.5.

TC358748XBG Pin Layout 13 4.

Package 14 4.1.

TC358746AXBG Package 14 4.2.

TC358748XBG Package 15 5.

Electrical Characteristics 16 5.1.

Absolute Maximum Ratings 16 5.2

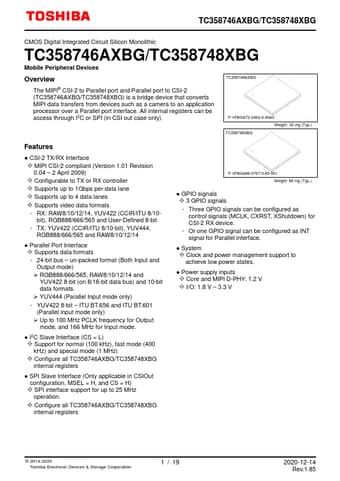

TC358746AXBG/TC358748XBG CMOS Digital Integrated Circuit Silicon Monolithic TC358746AXBG/TC358748XBG Mobile Peripheral Devices Overview TC358746AXBG The MIPI® CSI-2 to Parallel port and Parallel port to CSI-2 (TC358746AXBG/TC358748XBG) is a bridge device that converts MIPI data transfers from devices such as a camera to an application processor over a Parallel port interface.

All internal registers can be access through I2C or SPI (in CSI out case only).

P-VFBGA72-0404-0.40A3 Weight: 32 mg

TC358748XBG Features

* CSI-2 TX/RX Interface

* MIPI CSI-2 compliant (Version 1.01 Revision 0.04

* 2 April 2009)

* Configurable to TX or RX controller

* Supports up to 1Gbps per data lane

* Supports up to 4 data lanes

* Supports video data formats - RX: RAW8/10/12/14, YUV422 (CCIR/ITU 8/10
