TC4512BF, TC4512BP Datasheet - Toshiba

TC4512BF 8-Channel Data Selector

TC4512BP/BF TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC4512BP, TC4512BF TC4512B 8-Channel Data Selector TC4512B is data selector which selects 8 channel data inputs (X0 through X7) according to binary address inputs A, B and C. Since high impedance can be given to output Z by setting DISABLE input to “H”, the wired-OR arrangement can be achieved. DISABLE input takes precedence over other inputs giving the output high impedance. If DISABLE = “L” and INHIBIT = “H”, the data sele.

TC4512BP-Toshiba.pdf

This datasheet PDF includes multiple part numbers: TC4512BF, TC4512BP. Please refer to the document for exact specifications by model.

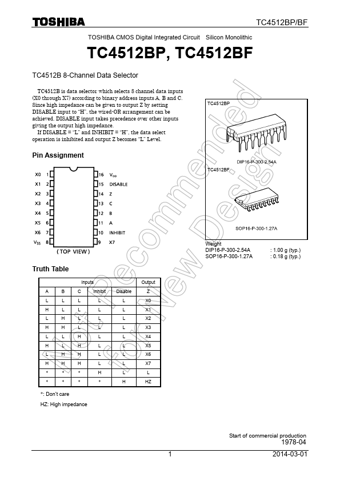

TC4512BF Datasheet Preview Page 2 TC4512BF Datasheet Preview Page 3

Datasheet Details

Part number:

TC4512BF, TC4512BP

Manufacturer:

Toshiba ↗

File Size:

214.04 KB

Description:

8-channel data selector.

Note:

This datasheet PDF includes multiple part numbers: TC4512BF, TC4512BP.
Please refer to the document for exact specifications by model.
