TC74VHC4040FK - 12-Stage Ripple Carry Binary Counter

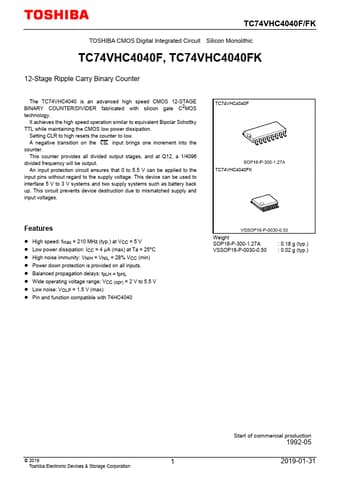

TC74VHC4040F/FK TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74VHC4040F, TC74VHC4040FK 12-Stage Ripple Carry Binary Counter The TC74VHC4040 is an advanced high speed CMOS 12-STAGE BINARY COUNTER/DIVIDER fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. Setting CLR to high resets the counter to low. A negative transition on the CK input brings one increme.

TC74VHC4040FK Features

* High speed: fmax = 210 MHz (typ.) at VCC = 5 V

* Low power dissipation: ICC = 4 μA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Power down protection is provided on all inputs.

* Balanced propagation delays: tpLH ∼

* tpHL

* Wide operating v
