TC74VHC03FN Quad 2-Input NAND Gate

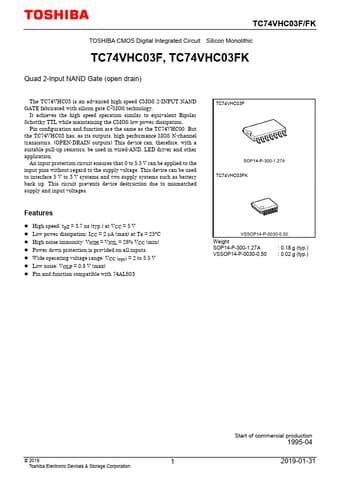

TC74VHC03F/FN/FT/FK TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74VHC03F,TC74VHC03FN,TC74VHC03FT,TC74VHC03FK Quad 2-Input NAND Gate (open drain) The TC74VHC03 is an advanced high speed CMOS 2-INPUT NAND GATE fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. Pin configuration and function are the same as the TC74VHC00. But the TC74VHC03 has, as its outpu.

TC74VHC03FN Features

* High speed: tpZ = 3.7 ns (typ.) at VCC = 5 V

* Low power dissipation: ICC = 2 μA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Power down protection is provided on all inputs.

* Wide operating voltage range: VCC (opr) = 2 to 5.5 V

TC74VHC03F_ToshibaSemiconductor.pdf

TC74VHC03FN Datasheet Preview — This datasheet PDF includes multiple part numbers: TC74VHC03FN, TC74VHC03F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TC74VHC03FN, TC74VHC03F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

321.40 KB

Description:

Quad 2-input nand gate.

Note:

This datasheet PDF includes multiple part numbers: TC74VHC03FN, TC74VHC03F.
Please refer to the document for exact specifications by model.
