TC74VHC03FT - Quad 2-Input NAND Gate

Product Overview

Toshiba Semiconductor

📥 Download Datasheet

TC74VHC03FT Quad 2-Input NAND Gate by Toshiba Semiconductor - Datasheet Preview — Datasheet preview – TC74VHC03FT

Datasheet Details

Part number	TC74VHC03FT
Manufacturer	Toshiba Semiconductor
File Size	321.40 KB
Description	Quad 2-Input NAND Gate
Datasheet	TC74VHC03FT Datasheet
Note	This datasheet PDF includes multiple part numbers: TC74VHC03FT, TC74VHC03F. Please refer to the document for exact specifications by model.

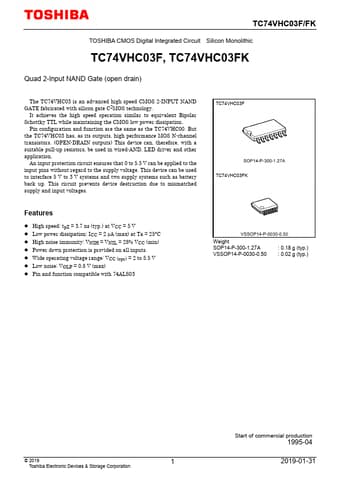

Additional preview pages of the TC74VHC03FT datasheet.

Product details

Features

High speed: tpZ = 3.7 ns (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 2 μA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Power down protection is provided on all inputs.
Wide operating voltage range: VCC (opr) = 2 to 5.5 V.
Low noise: VOLP = 0.8 V (max).
Pin and function compatible with 74ALS03 Note: xxxFN (JEDEC SOP) is not available in Japan. TC74VHC03F TC74VHC03FN TC74VHC03FT TC74VHC03FK Weight SO.
