TC74VHC00FN - QUAD 2-INPUT NAND GATE

TC74VHC00FN Description

TC74VHC00F/FN/FT/FK TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74VHC00F,TC74VHC00FN,TC74VHC00FT,TC74VHC00FK Quad 2-Input NAND Gate .

TC74VHC00FN Features

* High speed: tpd = 3.7 ns (typ. ) at VCC = 5 V
* Low power dissipation: ICC = 2 μA (max) at Ta = 25°C
* High noise immunity: VNIH = VNIL = 28% VCC (min)
* Power down protection is provided on all inputs.
* Balanced propagation delays: tpLH ∼
* tpHL

TC74VHC00FN Applications

* including but not limited to (a) determining the appropriateness of the use of this Product in such design or applications; (b) evaluating and determining the applicability of any information contained in this document, or in charts, diagrams, programs, algorithms, sample application circuits, or a

📥 Download Datasheet

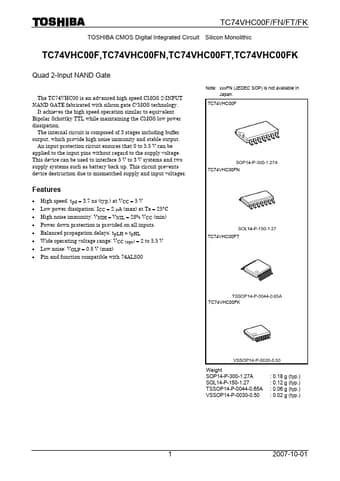

Preview of TC74VHC00FN PDF
