TC74VHC00FK - Quad 2-Input NAND Gate

Product Overview

Toshiba

Part number	TC74VHC00FK
Manufacturer	Toshiba
File Size	283.37 KB
Description	Quad 2-Input NAND Gate
Datasheet	TC74VHC00FK Datasheet
Note	This datasheet PDF includes multiple part numbers: TC74VHC00FK, TC74VHC00F. Please refer to the document for exact specifications by model.

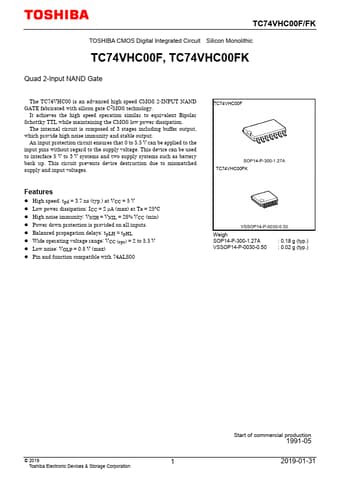

Additional preview pages of the TC74VHC00FK datasheet.

High speed: tpd = 3.7 ns (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 2 μA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Power down protection is provided on all inputs.
Balanced propagation delays: tpLH ∼.
tpHL.
Wide operating voltage range: VCC (opr) = 2 to 5.5 V.
Low noise: VOLP = 0.8 V (max).
Pin and function compatible with 74ALS00 Weigh SOP14-P-300-1.27A VSSOP14-P-0030-0.50 : 0.18 g (typ. ) : 0.02 g (typ. ) © 2.
