TC74VHC00FT, QUAD 2-INPUT NAND GATE

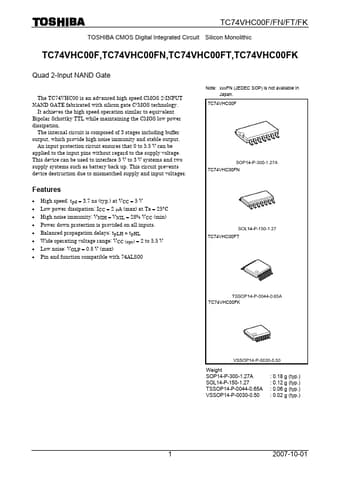

TC74VHC00F/FN/FT/FK TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74VHC00F,TC74VHC00FN,TC74VHC00FT,TC74VHC00FK Quad 2-Input NAND Gate .

datasheet Preview Page 1 from Datasheet4u.com

TC74VHC00FT_ToshibaSemiconductor.pdf

TC74VHC00FT Datasheet Preview — Preview of TC74VHC00FT PDF

Datasheet Details

Part number:

TC74VHC00FT

Manufacturer:

Toshiba ↗

File Size:

197.17 KB

Description:

QUAD 2-INPUT NAND GATE

Features

* High speed: tpd = 3.7 ns (typ. ) at VCC = 5 V
* Low power dissipation: ICC = 2 μA (max) at Ta = 25°C
* High noise immunity: VNIH = VNIL = 28% VCC (min)
* Power down protection is provided on all inputs.
* Balanced propagation delays: tpLH ∼
* tpHL

Applications
