TD6127BP - ECL PRESCALLER FOR COMMUNICATIONS RADIO

TD6127BP Description

TOSHIBA Bipolar Digital Integrated Circuit Silicon Monolithic TD6127BP ECL Prescaller For Communications Radio TD6127BP TD6127BP is a 2 modulus pres.

TD6127BP Features

* Maximum operating frequency is 1 GHz.
* 2 modulus prescaller: N = 64 / 65 or N = 128 / 129
* Input voltage sensitivity is 50mVrms.
* The package is DIP 8 pins. Weight: 0.5g (typ. ) Block Diagram Pin Connection (top view) 1 2002-10-30 Pin Function Pin No. 1 2 3 4 5 6 7 8 Symbol

TD6127BP Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m

📥 Download Datasheet

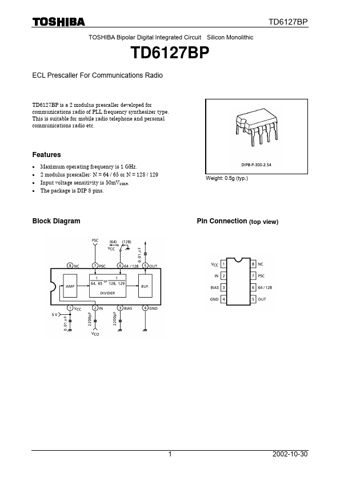

Preview of TD6127BP PDF
datasheet Preview Page 2 datasheet Preview Page 3
