TLP700HF Datasheet - Toshiba

TLP700HF, Photocoupler

Photocouplers Infrared LED & Photo IC TLP700HF TLP700HF 1.Applications * Industrial Inverters * Air Conditioner Inverters *.

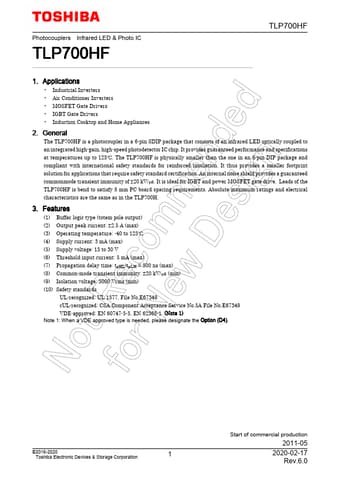

datasheet Preview Page 1 from Datasheet4u.com

TLP700HF-Toshiba.pdf

TLP700HF Datasheet Preview — Preview of TLP700HF PDF

Datasheet Details

Part number:

TLP700HF

Manufacturer:

Toshiba ↗

File Size:

438.64 KB

Description:

Photocoupler

Features

* (1) Buffer logic type (totem pole output) (2) Output peak current: ±2.5 A (max) (3) Operating temperature: -40 to 125 (4) Supply current: 3 mA (max) (5) Supply voltage: 15 to 30 V (6) Threshold input current: 5 mA (max) (7) Propagation delay time: tpHL/tpLH = 500 ns (max) (8) Common-mode transient

Applications

* Industrial Inverters
* Air Conditioner Inverters
* MOSFET Gate Drivers
* IGBT Gate Drivers
* Induction Cooktop and Home Appliances 2. General The TLP700HF is a photocoupler in a 6-pin SDIP package that consists of an infrared LED optically coupled to an inte
