TLP700AF - Photocoupler

TLP700AF Description

Photocouplers Infrared LED & Photo IC TLP700AF TLP700AF 1.Applications * Industrial Inverters * Air Conditioner Inverters *.

TLP700AF Features

* (1) Buffer logic type (totem pole output) (2) Output peak current: ±2.5 A (max) (3) Operating temperature: -40 to 110 (4) Supply current: 3 mA (max) (5) Supply voltage: 15 to 30 V (6) Threshold input current: 5 mA (max) (7) Propagation delay time: 200 ns (max) (8) Common-mode transient immunity: ±2

TLP700AF Applications

* Industrial Inverters
* Air Conditioner Inverters
* MOSFET Gate Drivers
* IGBT Gate Drivers
* Induction Cooktop and Home Appliances 2. General The TLP700AF is a photocoupler in a 6-pin SDIP package that consists of an infrared LED optically coupled to an inte

📥 Download Datasheet

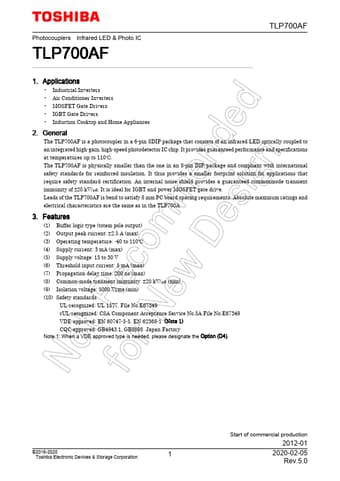

Preview of TLP700AF PDF
