TLP700H Datasheet - Toshiba

TLP700H - Photocoupler

Photocouplers Infrared LED & Photo IC TLP700H TLP700H 1.

Applications Industrial Inverters Air Conditioner Inverters MOSFET Gate Drivers IGBT Gate Drivers Induction Cooktop and Home Appliances 2.

General The TLP700H is a photocoupler in a 6-pin SDIP package that consists of an infrared LED optically coupled to an integrated high-gain, high-speed photodetector IC chip.

It provides guaranteed performance and specifications at temperatures up to 1

TLP700H Features

* (1) Buffer logic type (totem pole output) (2) Output peak current: ±2.5 A (max) (3) Operating temperature: -40 to 125  (4) Supply current: 3 mA (max) (5) Supply voltage: 15 to 30 V (6) Threshold input current: 5 mA (max) (7) Propagation delay time: 500 ns (max) (8) Common-mode transient immunity: ±

TLP700H-Toshiba.pdf

Preview of TLP700H PDF

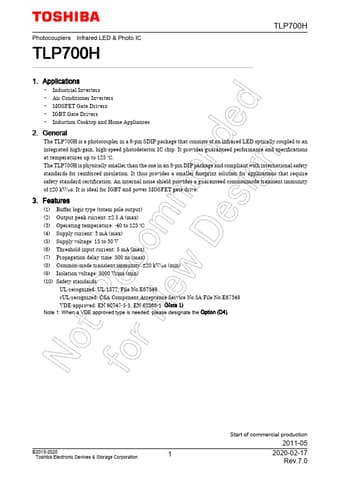

TLP700H Datasheet Preview Page 2 TLP700H Datasheet Preview Page 3

Datasheet Details

Part number:

TLP700H

Manufacturer:

Toshiba ↗

File Size:

445.98 KB

Description:

Photocoupler.
