TLP701HF - Photocoupler

TLP701HF Description

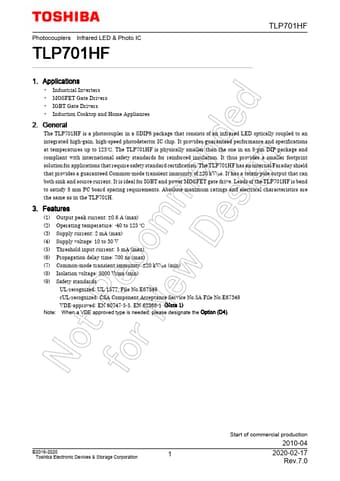

Photocouplers Infrared LED & Photo IC TLP701HF TLP701HF 1.Applications * Industrial Inverters * MOSFET Gate Drivers * IGBT .

TLP701HF Features

* (1) Output peak current: ±0.6 A (max) (2) Operating temperature: -40 to 125  (3) Supply current: 2 mA (max) (4) Supply voltage: 10 to 30 V (5) Threshold input current: 5 mA (max) (6) Propagation delay time: 700 ns (max) (7) Common-mode transient immunity: ±20 kV/µs (min) (8) Isolation voltage: 5000

TLP701HF Applications

* Industrial Inverters
* MOSFET Gate Drivers
* IGBT Gate Drivers
* Induction Cooktop and Home Appliances 2. General The TLP701HF is a photocoupler in a SDIP6 package that consists of an infrared LED optically coupled to an integrated high-gain, high-speed photodetecto
