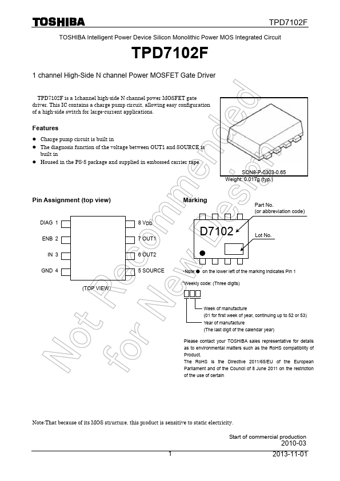

TPD7102F 1-channel High-Side N channel Power MOSFET Gate Driver

Pin No. 1 2 3 4 5 6 7 8 Symbol Function DIAG Diagnosis detection pin. N channel open drain. ENB IN GND Enable pin. The ENB pin has a pull-down resistor. When VENB is L, OUT1 is Hz and OUT2 is L. Input pin. The IN pin has a pull-down resistor. When VIN and VENB are H, OUT1 and OUT2 are H. Groun.

TPD7102F Features

* z Charge pump circuit is built in z The diagnosis function of the voltage between OUT1 and SOURCE is built in z Housed in the PS-8 package and supplied in embossed carrier tape. SON8-P-0303-0.65 Weight: 0.017g (typ.) Pin Assignment (top view) DIAG 1 ENB 2 IN 3 GND 4 (TOP VIEW） 8 VDD 7 OUT1 6 OU
