TPD7106F

1-channel High-Side N channel Power MOSFET Gate Driver

Toshiba

Image	Manufacturer	P/N	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Toshiba America Electronic Components	TPD7106F	TPD7106F,L1MCF(S	MOSFET and Power Driver 5mA 1-Output 400mA High Side Non-Inverting 10-Pin P-WSON - Tape and Reel (Alt: TPD7106F,L1MCF(S)	Avnet Americas	0	0	$0

Download Datasheet (622.12 KB)

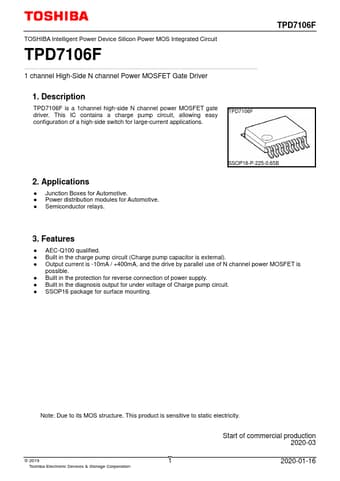

TPD7106F Datasheet Preview — Preview of TPD7106F Datasheet

Datasheet Details

Part number:

TPD7106F

Manufacturer:

Toshiba ↗

File Size:

622.12 KB

Description:

1-channel high-side n channel power mosfet gate driver.
TOSHIBA Intelligent Power Device Silicon Power MOS Integrated Circuit TPD7106F 1 channel High-Side .
TPD7106F is a 1channel high-side N channel power MOSFET gate driver. This IC contains a charge pump .

✔ TPD7106F Features

AEC-Q100 qualified.
Built in the charge pump circuit (Charge pump capacitor is external).
Output current is -10mA / +400mA, and the drive by parallel use of N chann

✔ TPD7106F Application

TPD7106F TPD7106F 2. Applications
Junction Boxes for Automotive.
Power distribution modules for Auto
