TPD70R1K5M Datasheet - Unigroup

700V Super-Junction Power MOSFET

TPD70R1K5M Features

* Very low FOM RDS(on)×Qg

* 100% avalanche tested

* RoHS compliant

* Integrated ESD protection diode APPLICATIONS

* Switch Mode Power Supply (SMPS)

* Uninterruptible Power Supply (UPS)

* Power Factor Correction (PFC) Device Marking and Package Information Device Packa

TPD70R1K5M General Description

700V super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs， designed according to the SJ principle. The SJ MOSFET is a price-performance optimized product enabling to target cost sensitive applications in Consumer and Lighting markets ， .

TPD70R1K5M Datasheet (405.73 KB)

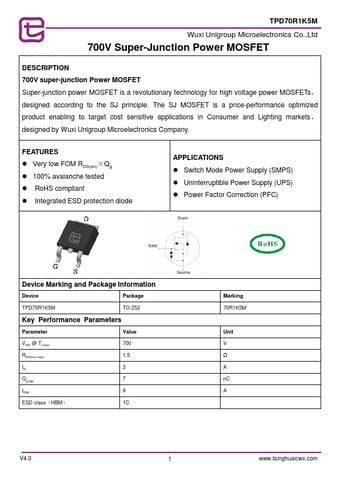

TPD70R1K5M Datasheet Preview — Preview of TPD70R1K5M PDF

Datasheet Details

Part number:

TPD70R1K5M

Manufacturer:

Unigroup

File Size:

405.73 KB

Description:

700v super-junction power mosfet.
