TPH3300CNH - Silicon N-channel MOSFET

Toshiba

📥 Download Datasheet

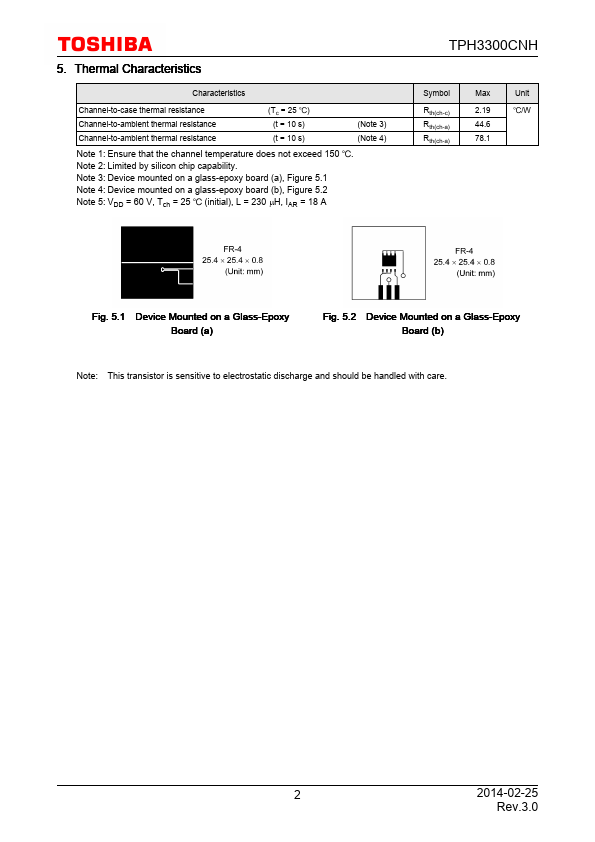

TPH3300CNH Datasheet Preview — Preview of TPH3300CNH PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPH3300CNH
Manufacturer	Toshiba ↗
File Size	233.50 KB
Description	Silicon N-channel MOSFET
Datasheet	TPH3300CNH-Toshiba.pdf

TPH3300CNH Product details

Features

(1) High-speed switching (2) Small gate charge: QSW = 4.5 nC (typ. ) (3) Low drain-source on-resistance: RDS(ON) = 28 mΩ (typ. ) (VGS = 10 V) (4) Low leakage current: IDSS = 10 µA (max) (VDS = 150 V) (5) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 0.3 mA) 3. Packaging and Internal Circuit TPH3300CNH 1, 2, 3: Source 4: Gate 5, 6, 7, 8: Drain SOP Advance 4. Absolute Maximum Ratings (Note) (Ta = 25  unless otherwise specified) Characteristics Symbol Rating Unit Drain-source volta.
