TXC04216 Datasheet, 16-channel, Transwitch

TXC04216 Features

  • 16-channel
  • Add/drop sixteen 2.048 Mbit/s signals from an STM-1 VC-4/AU-3, STS-3, or an STS-1
  • Independent add and drop bus timing modes
  • Selectable HDB3 positive/negati

PDF File Details

Part number:

TXC04216

Manufacturer:

Transwitch

File Size:

0.99MB

Download:

📄 Datasheet

Description:

E1mx16 device e1 mapper 16-channel. The E1 Mapper 16-Channel device is designed for add/drop multiplexer, terminal multiplexer, and dual and single unidirectional ring a

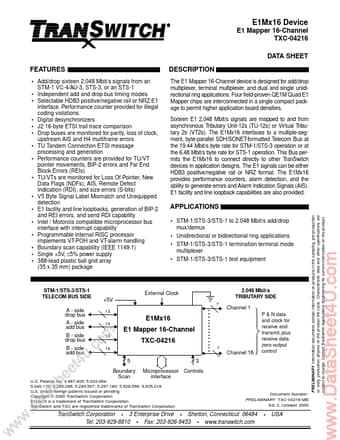

Datasheet Preview: TXC04216 📥 Download PDF (0.99MB)
Page 2 of TXC04216 Page 3 of TXC04216

TXC04216 Application

  • Applications Four field-proven QE1M Quad E1 Mapper chips are interconnected in a single compact package to permit higher application board densitie
