TXC04222 Datasheet, Mapper, Transwitch

TXC04222 Features

• Mapper
• Add/drop up to 28 E1, DS1, or VT/TU payloads from two add and two drop STM-1/VC4, STS-3 buses
• Add bus and drop bus timing modes
• Cross mapping applications

PDF File Details

Part number:

TXC04222

Manufacturer:

Transwitch

File Size:

4.46MB

Download:

📄 Datasheet

Description:

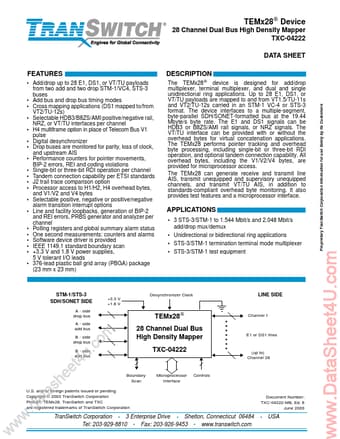

28-channel dual bus high density mapper. The TEMx28 device is designed for add/drop multiplexer, terminal multiplexer, and dual and single unidirectional ring applications.

TXC04222 Application

• Applications (DS1 mapped to/from VT2/TU-12s)
• Selectable HDB3/B8ZS/AMI positive/negative rail, NRZ, or VT/TU interfaces per channel
