TXC04218 Datasheet, Mapper, Transwitch

TXC04218 Features

• Mapper
• Add/drop up to 8 E1, DS1, or VT/TU payloads from two add and two drop STM-1/VC4, STS-3 buses
• Add bus and drop bus timing modes
• Cross mapping applications (

PDF File Details

Part number:

TXC04218

Manufacturer:

Transwitch

File Size:

4.14MB

Download:

📄 Datasheet

Description:

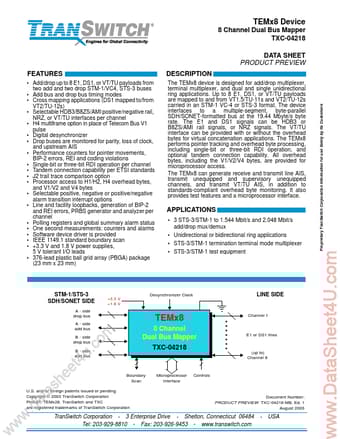

8-channel dual bus mapper. The TEMx8 device is designed for add/drop multiplexer, terminal multiplexer, and dual and single unidirectional ring applications. Up

TXC04218 Application

• Applications (DS1 mapped to/from VT2/TU-12s)
• Selectable HDB3/B8ZS/AMI positive/negative rail, NRZ, or VT/TU interfaces per channel
