TGA4811 Low Noise Amplifier

📥 Download Datasheet  Datasheet Preview Page 1

Description

Advance Product Information June 30, 2005 DC - 60 GHz Low Noise Amplifier Key .
The TriQuint TGA4811 is a DC - 60 GHz low noise amplifier that typically provides 15 dB small signal gain and input and output return loss is.

📥 Download Datasheet

Preview of TGA4811 PDF

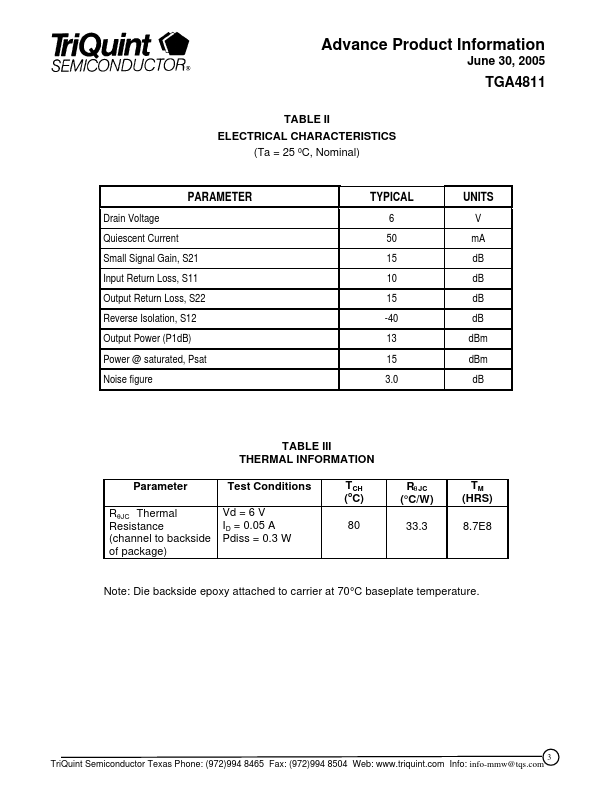

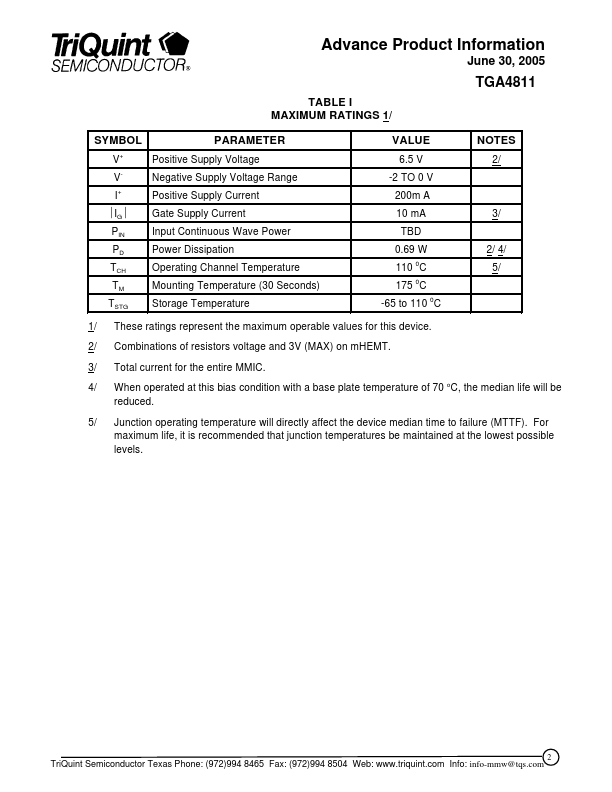

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TGA4811
Manufacturer
TriQuint Semiconductor
File Size
227.64 KB
Datasheet
TGA4811_TriQuintSemiconductor.pdf
Description
Low Noise Amplifier

Features

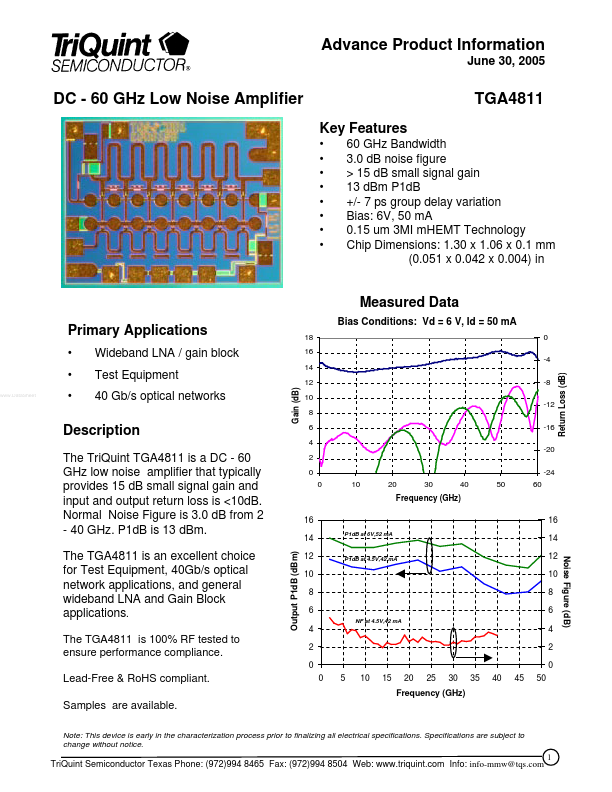

* TGA4811 60 GHz Bandwidth 3.0 dB noise figure > 15 dB small signal gain 13 dBm P1dB +/- 7 ps group delay variation Bias: 6V, 50 mA 0.15 um 3MI mHEMT Technology Chip Dimensions: 1.30 x 1.06 x 0.1 mm (0.051 x 0.042 x 0.004

Applications

* www. DataSheet4U. com Bias Conditions: Vd = 6 V, Id = 50 mA 18 16 14 12 Gain (dB) 10 -12 8 6 4 -16 -20 2 0 0 10 20 30 40 50 60 Frequency (GHz) -24 -4 -8 Return Loss (dB) 0 Wideband LNA / gain block Test Equipment 40 Gb/s optical networks
