TGA4549-SM 10W GaN Power Amplifier

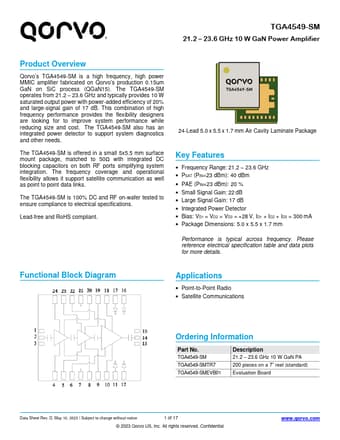

21.2 * 23.6 GHz 10 W GaN PA 200 pieces on a 7” reel (standard) Evaluation Board Data Sheet Rev. D, May 10, 2023 | Subject to change without notice 1 of 17 © 2023 Qorvo US, Inc. All rights reserved. Confidential www.qorvo.com TGA4549-SM 21.2 * 23.6 GHz 10 W GaN Power Amplifier A.

TGA4549-SM 21.2 23.6 GHz 10 W GaN Power Amplifier Product Overview Qorvo’s TGA4549-SM is a high frequency, high power MMIC amplifier fabricated on Qorvo’s production 0.15um GaN on SiC process (QGaN15). The TGA4549-SM operates from 21.2 23.6 GHz and typically provides 10 W saturated output power with power-added efficiency of 20% and large-signal gain of 17 dB. This combination of high frequency performance provides the flexibility designers are looking for to improve system .

TGA4549-SM Features

* Frequency Range: 21.2

* 23.6 GHz

* PSAT (PIN=23 dBm): 40 dBm

* PAE (PIN=23 dBm): 20 %

* Small Signal Gain: 22 dB

* Large Signal Gain: 17 dB

* Integrated Power Detector

* Bias: VD1 = VD2 = VD3 = +28 V, ID1 + ID2 + ID3 = 300 mA

TGA4549-SM-Qorvo.pdf

TGA4549-SM Datasheet Preview — Preview of TGA4549-SM PDF

Datasheet Details

Part number:

TGA4549-SM

Manufacturer:

Qorvo

File Size:

1.60 MB

Description:

10w gan power amplifier.
