TGA4544-SM Datasheet - TriQuint Semiconductor

TGA4544-SM 1W Power Amplifier

The TriQuint TGA4544-SM is a Ka-Band Power Amplifier with integrated power detector. The TGA4544-SM operates from 26 * 31 GHz and is designed using TriQuint’s power pHEMT production process. The TGA4544-SM typically provides 32 dBm of saturated output power with small signal gain of 23 dB. T.

TGA4544-SM Features

* Frequency Range: 26

* 31 GHz

* Power: 32 dBm Psat, 31 dBm P1dB

* Gain: 23 dB

* TOI: 41 dBm at 20 dBm/tone

* Integrated Power Detector

* Bias: Vd = 6 V, Idq = 1100 mA, Vg = -0.58 V Typical

* Package Dimensions: 5.0 x 5.0 x 1.3 mm TGA4544-SM 26

* 31 GHz 1

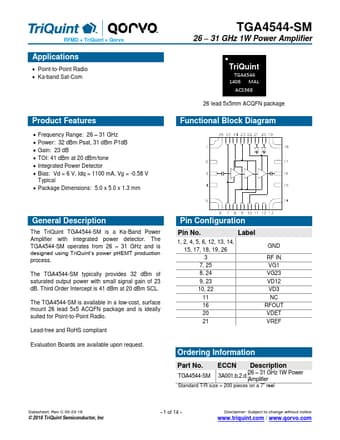

TGA4544-SM-TriQuintSemiconductor.pdf

TGA4544-SM Datasheet Preview — Preview of TGA4544-SM PDF

Datasheet Details

Part number:

TGA4544-SM

Manufacturer:

TriQuint Semiconductor

File Size:

1.04 MB

Description:

1w power amplifier.
