TGA4548 10W GaN Power Amplifier

Waffle tray with 25 pcs Evaluation board Space Inspected Version; contact Sales 1 of 12 © 2020 Qorvo US, Inc. All rights reserved. Confidential www.qorvo.com ® Absolute Maximum Ratings Parameter Rating Drain Voltage (VD) 29.5 V Gate Voltage Range (VG) -8 to 0 V Drain Current Stage 1 (ID1).

TGA4548 ® 17 - 20 GHz 10 W GaN Power Amplifier Product Overview Qorvo’s TGA4548 is a high frequency, high power MMIC amplifier fabricated on Qorvo’s production 0.15um GaN on SiC process (QGaN15). The TGA4548 operates from 17 20 GHz and typically provides 10 W saturated output power with power-added efficiency of 25% and large-signal gain of 18 dB. This combination of high frequency performance provides the flexibility designers are looking for to improve system performance while red.

TGA4548 Features

* Frequency Range: 17

* 20 GHz

* PSAT (PIN=22 dBm): 40 dBm

* PAE (PIN=22 dBm): 25 %

* Small Signal Gain: 30 dB

* Integrated Power Detector

* Bias: VD1 = VD2 = VD3 = +28 V, ID1 + ID2 + ID3 = 300 mA

* Chip Dimensions: 2.95 x 2.80 x 0.10 mm Performance is typical acr

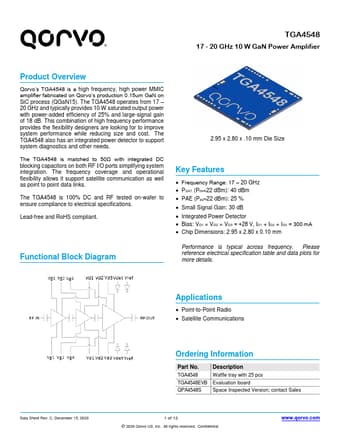

TGA4548 Datasheet (1.00 MB)

TGA4548 Datasheet Preview — Preview of TGA4548 PDF

Datasheet Details

Part number:

TGA4548

Manufacturer:

Qorvo

File Size:

1.00 MB

Description:

10w gan power amplifier.
