TGA4548-SM 10W GaN Power Amplifier

K-band 10W GaN PA 200 pieces on a 7” reel (standard) Evaluation Board 1 of 17 www.qorvo.com TGA4548-SM ® 17 * 20 GHz 10 W GaN Power Amplifier Absolute Maximum Ratings Parameter Rating Drain Voltage (VD) 29.5 V Gate Voltage Range (VG) -8 to 0 V Drain Current Stage 1 (ID1), Top or.

TGA4548-SM ® 17 20 GHz 10 W GaN Power Amplifier Product Overview Qorvo’s TGA4548-SM is a high frequency, high power MMIC amplifier fabricated on Qorvo’s production 0.15um GaN on SiC process (QGaN15). The TGA4548-SM operates from 17 20 GHz and typically provides > 10 W saturated output power with power-added efficiency of 25% and large-signal gain of 18 dB. This combination of high frequency performance provides the flexibility designers are looking for to improve system pe.

TGA4548-SM Features

* Frequency Range: 17

* 20 GHz

* PSAT (PIN=22 dBm): 40 dBm

* PAE (PIN=22 dBm): 25 %

* Small Signal Gain: 30 dB

* Integrated Power Detector

* Bias: VD1 = VD2 = VD3 = +28 V, ID1 + ID2 + ID3 = 300 mA

* Package Dimensions: 5.0 x 5.5 x 1.7 mm Functional Block Diagram

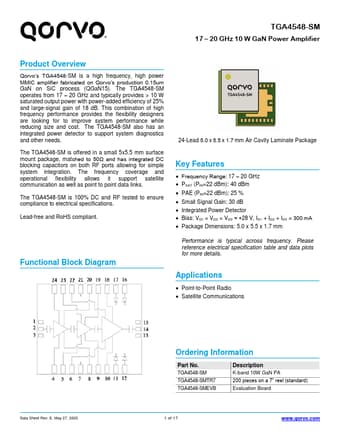

TGA4548-SM-Qorvo.pdf
