TGA4542 Datasheet - TriQuint Semiconductor

Power Amplifier

TGA4542 Features

* Frequency range: 37 - 40 GHz

* Output Power: 32.5 dBm Psat, 31.5 dBm P1dB

* Gain: 26 dBm Typical

* TOI: 38 dBm @ 18 dBm Output/Tone

* Integrated Power Detector

* Bias: Vcc = 6V, Icc = 900 mA Typical

* Dimension: 2.95 x 2.95 x 0.1 mm Functional Block Diagram Vg Vd1 Vd2

TGA4542 General Description

The TriQuint TGA4542 is a 37 - 40 GHz Power Amplifier designed using TriQuint’s power pHEMT production process. The TGA4542 typically provides 31.5 dBm of output power at 1dB gain compression with small signal gain of 26 dB. Third Order Intercept is 38 dBm at 18 dBm Output/Tone. The TGA4542 is ideal.

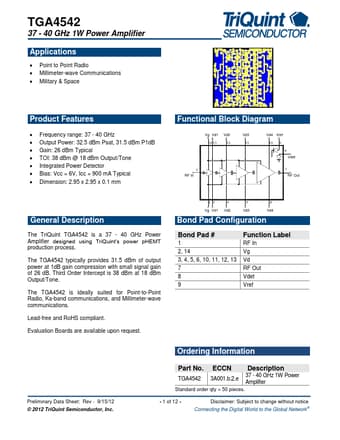

TGA4542 Datasheet (1.02 MB)

TGA4542 Datasheet Preview — Preview of TGA4542 PDF

Datasheet Details

Part number:

TGA4542

Manufacturer:

TriQuint Semiconductor

File Size:

1.02 MB

Description:

Power amplifier.
TGA4542 37 - 40 GHz 1W Power Amplifier Applications Point to Point Radio Millimeter-wave Communications Military & Space Product Fe.
