TGA4541-SM Datasheet - TriQuint Semiconductor

Ka-Band Variable Gain Driver Amplifier

TGA4541-SM Features

* Frequency Range: 28

* 31 GHz

* Power: 23 dBm P1dB

* Gain: 33 dB

* Output TOI: 31 dBm

* Attenuation Range: 30 dB

* Bias: Vd = 5 V, Id = 330 mA, Vg = -0.7 V Typical

* Package Dimensions: 6.0 x 6.0 x 0.85 mm TGA4541-SM Ka-Band Variable

TGA4541-SM General Description

The TriQuint TGA4541-SM is a variable gain amplifier to be used as a driver amplifier in linear Ka band applications. The TGA4541-SM operates from 28 to 31 GHz and is designed using TriQuint’s pHEMT production process. The TGA4541-SM typically provides 23 dBm of linear power with 32 dB of small sign.

TGA4541-SM Datasheet (968.59 KB)

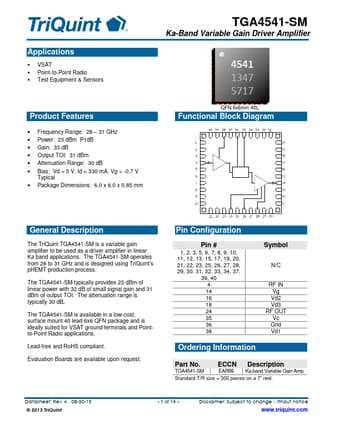

Preview of TGA4541-SM PDF

Datasheet Details

Part number:

TGA4541-SM

Manufacturer:

TriQuint Semiconductor

File Size:

968.59 KB

Description:

Ka-band variable gain driver amplifier.
