TGA4543 Datasheet - TriQuint Semiconductor

Power Amplifier

TGA4543 Features

* Frequency range: 40.5 - 43.5 GHz

* Output Power: 30 dBm Psat, 28.5 dBm P1dB

* Gain: 23 dBm Typical

* TOI: 38 dBm @ 18 dBm Output/Tone

* Integrated Power Detector

* Bias: Vcc = 6V, Icc = 900 mA Typical

* Dimension: 2.95 x 2.95 x 0.1 mm Functional Block Diagram Vg Vd1 V

TGA4543 General Description

The TriQuint TGA4543 is a 40.5 - 43.5 GHz Power Amplifier designed using TriQuint’s power pHEMT production process. The TGA4543 typically provides 28.5 dBm of output power at 1dB gain compression with small signal gain of 23 dB. Third Order Intercept is 38 dBm at 18 dBm Output/Tone. The TGA4543 is i.

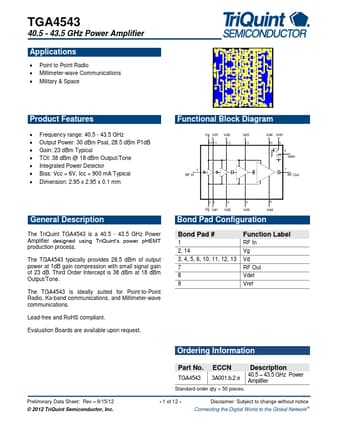

TGA4543 Datasheet (1.07 MB)

TGA4543 Datasheet Preview — Preview of TGA4543 PDF

Datasheet Details

Part number:

TGA4543

Manufacturer:

TriQuint Semiconductor

File Size:

1.07 MB

Description:

Power amplifier.
TGA4543 40.5 - 43.5 GHz Power Amplifier Applications Point to Point Radio Millimeter-wave Communications Military & Space Product F.
